In optogenetics experiment, an optic fiber connected to the head of an animal restricts animal behavior especially in test cages with high walls, gates and other obstacles.Teleopto breaks this wall by enabling complete wireless environment for optogenetic stimulation, using very light receivers sitting perched on animal's head.


#

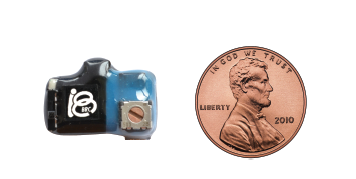

Extra small, extra light receivers even suitable for mice.


#

High brightness LED and optic fiber cannula are coupled to achieve mW order light power at the tip. Colors can be changed just by swapping the LED cannula component.


#

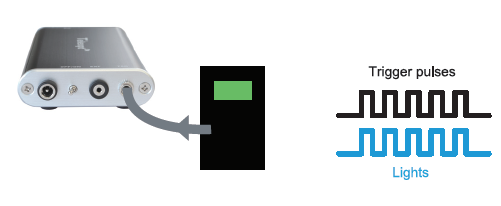

Remote controller accepts trigger signals from a stimulator, and sends the signals to the receiver. Synchronized light pulses are generated from the tip of the LED cannula (in pulse mode).


#

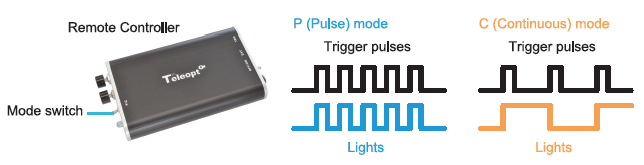

Receiver has two types, pulse and continuous, each for high frequency and continuous stimulation. The remote controller is compatible for both receivers, by switching the mode switch. Pulse receiver flashes at the same timing with trigger pulses, whereas continuous receiver alternates on and off upon a new pulse.


#

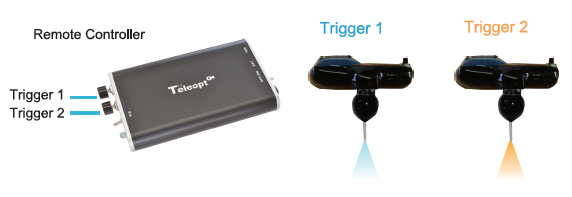

Some opsins are activated by blue light and inactivated by yellow light. Together with the 2 channel receiver and two color LED cannula, you can stimulate by two different colors at the same position. The remote controller accepts two independent triggers.


#

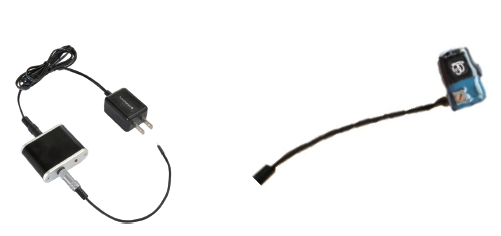

Receiver can be charged and re-used repeatedly by a dedicated charger.


#

Bilateral stimulation is possible. If you want to stimulate both hemisphere simultaneously please use 1ch receiver. If you want to stimulate each hemisphere one by one, please use 2ch receiver.


#



RECEIVERS

model: TeleR-1-P

#

Teleopto receiver 1g / pulse

size: 13 x 18 x 7mm

weight (approx.): 1.4g

standby time: 17h


model: TeleR-1-2P

#

Teleopto receiver 1g / 2ch pulse

size: 13 x 18 x 7mm

weight (approx.): 1.5g

standby time: 17h


model: TeleR-2-P

#

Teleopto receiver 2g / pulse

size: 16 x 23 x 7mm

weight (approx.): 2.0g

standby time: 28h


model: TeleR-2-2P

#

Teleopto receiver 2g / 2ch pulse

size: 16 x 23 x 7mm

weight (approx.): 2.1g

standby time: 28h


model: TeleR-3-P

#

Teleopto receiver 3g / pulse

size: 17 x 24 x 8mm

weight (approx.): 3.0g

standby time: 49h


model: TeleR-3-2P

#

Teleopto receiver 3g / 2ch pulse

size: 17 x 24 x 8mm

weight (approx.): 3.1g

standby time: 49h


LED Cannulas

LED cannula

#

model: TeleLC-c-l-d

Single cannula. Hard enough for insertion without a guide.

LED probe

#

model: TeleLP-c

LED without cannula.For brain surface stimulation.


Two color LED cannula

#

model: TeleLCT-c/c-l

Two 250?m cannulas are bundled like one cannula.

Bilateral LED cannula

#

model: TeleLCD-c-l-d-i

For bilateral stimulation. Specify interval.

TWO COLOR LED Probe

#

model: TeleLCD-c/c

Two color version of the LED probe.

LED Ferrule

#

model: TeleLF-c-d-f

Universal ferrule for connection with ferruled cannula. (e.g. from Doric Lenses / Thorlabs)

Note: how to identify specifications from the model number:

c: color. B (blue 470nm) / G (green 525nm) / Y (yellow 590nm) / R (red 630nm) ... for other colors please contact us.

l: Length. Specify in mm. d: Fiber diameter. 250 (?250?m) / 500 (?500?m) / 750 (?750nm)

i: Fiber interval. Specify in mm.

f: Ferrule OD (LED ferrule only). 1.25mm / 2.5mm

-Glass: Glass fiber instead of the regular plastic fiber. Only available for ?250?m fiber.

Stimulator for optogenetics

model: STOmk-2

#
#

Specification

Stim Channel 2ch (Independent)
Trigger In 2ch (Independent)
Parameter
Delay 100μs - 9990s
Width 100μs - 9990s
Interval 100μs - 9990s
Pulse number 1 - 999
Repeat interval 100μs - 9990s
Repeat number 1 - 999
Amplitude 0.0 - 5.0V
Memory Yes
Endless Repeat Yes
Power DC5V

STO mk-II is a pulse generator developed for optogenetics.

By connecting the STO mk-II to TRG port on the Teleopto Remote Controller via a trigger cable, you can control the timing of light stimulation by TTL pulses. Pulses are defined by the parameters illustrated below.

#

Light power meter

model: LPM-100

#
#

Specification

Wavelength 470nm (blue)
530nm (green)
590nm (Yellow)
630nm (Red)
Display Liquid crystal
Resolution 0.01mW
Power 2x AA batteries

In optogenetics, it is important to measure the light power at the tip of optic fiber cannula, and the LPM-100 is best suited for this purpose. LPM-100 covers three colors, blue, green and yellow which are commonly used in optogenetics. Easy to use, mobilable by the battery-powered design.

6 channel Hub

model:TeleHub6

#

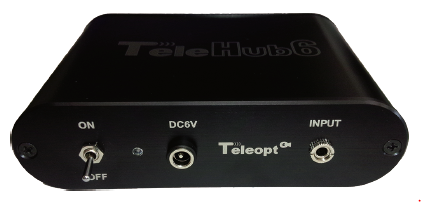

By connecting the TeleHub6 to the EXT port on the Teleopto Remote controller, you can use up to 6 infrared emitters at the same time so that you can increase the throughput of your experiment. This device is also useful if you use a maze with many branches or high walls which block infrared signal and prevent a good transmission. By putting several infrared emitters at several positions, it ensures more stable light stimulation.


Note: All infrared emitters send a signal at the same timing.

#
